"Mist Manager" Automatic Mist Collector Control (120V)

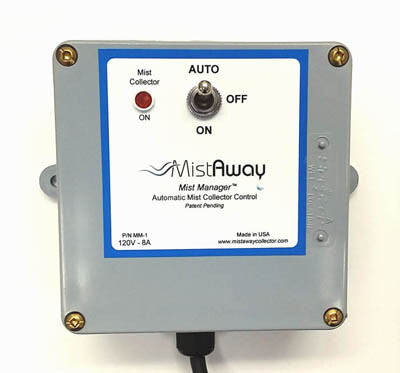

"Mist Manager" Automatic Mist Collector Control unit.

For use with all 120V Mistaway models (not compatible with 230V Mistaway units).

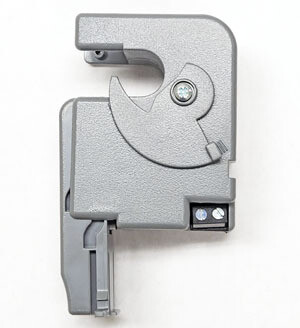

• Current sensor detects current to coolant pump (or spindle) and actuates mist collector operation
• Turns mist collector on with coolant pump and continues to run for a timed interval after coolant shuts off
• Eliminates the need for employees to turn on/off the mist collector manually
• Prevents the mist collector from being left on accidentally
• Saves mist collector maintenance costs and electricity

Principle of operation:
Control will turn on mist collector as current sensor detects power to coolant pump. After coolant pump shuts off, mist collector continues to run for timed interval of 5 minutes (user settable) then shuts off automatically. Current sensor could be clamped around either a coolant pump or spindle power wire.

For additional info and instructions see "Download files" link.
